Name: APC Easy UPS On-Line, 3kVA/2700W, Rackmount 4U, 230V, 6x IEC C13+1x IEC C19 outlets, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit (SRV3KRILRK-E)
SKU: SRV3KRILRK-E
Availability: InStock

APC Easy UPS On-Line, 3kVA/2700W, Rackmount 4U, 230V, 6x IEC C13+1x IEC C19 outlets, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit (SRV3KRILRK-E)

Rp22.200.000

Spesifikasi

Overview
Presentation	High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Lead time	Usually in Stock

Main
Run-time untuk beban W Min-maks: 270-2700 W	14mnt 45dtk
Kapasitas Maks. Digunakan	100 %
Main Input Voltage	230 V
Product or component type	Uninterruptible power supply (UPS)
Other Input Voltage	220 V 240 V
Output voltage	230 V
Other Output Voltage	220 V 240 V
Rated power in W	2700 W
Rated power in VA	3000 VA
Input Connection Type	IEC 60320 C20
Output connection type	6 IEC 60320 C13 1 IEC 60320 C19
Number of rack unit	4U
Number of cables	1
Provided equipment	1 IEC 60320 C19 to Schuko power cable 1 IEC 60320 C13 to C14 power cable 1 USB cable 1 RS-232 configuration cable 2 rack mounting brackets 2 rack mounting support rails 1 external battery pack 1 battery cable user manual
Range of product	Easy UPS On-Line

Batteries & Runtime
Run-time
Efisiensi
Battery type	Lead-acid battery
Battery voltage	72 V
Extended runtime	1
Number of battery filled slots	1
Number of battery free slots	0
Battery recharge time	5.5 h
Battery life	3…5 year(s)
Battery charger power	525 W rated

General
Number of power module filled slots	0
Number of power module free slots	0
Redundant	No

Physical
Colour	Black (RAL 7010)
Height	172 mm
Width	437 mm
Depth	632 mm
Product weight	52.2 kg
Mounting location	Front
Mounting preference	Lower
Mounting mode	Rack-mounted
USB compatible	No
Mounting position	Horizontal

Input
Input voltage limits	105…300 V 40% load 180…285 V full load
Network frequency	40…70 Hz auto sensing

Output
Maximum configurable power in VA	3000 VA
Maximum configurable power in W	2700 W
Output frequency	50/60 Hz +/- 3 Hz sync to mains
Harmonic distortion	3 %
UPS type	Double conversion online
Wave type	Sine wave
Efficiency	90 % (full load)
Additional information	Configurable for 220 : 230 or 240 nominal output voltage
Bypass type	Internal bypass (automatic and manual)
Crest factor	3 : 1

Conformance
Product certifications	CE UKCA TISI
Standards	EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-2:2018

Environmental
Ambient air temperature for operation	0…40 °C
Relative humidity	0…95 % non-condensing
Operating altitude	0…3000 m
Ambient air temperature for storage	-20…50 °C
Storage Relative Humidity	0…95 % non-condensing
Storage altitude	0…15000 m
Acoustic level	53 dBA
Heat dissipation	1024 Btu/h
IP degree of protection	IP20

Communications & Management
Alarm	Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
Control panel	Multifunction LCD status and control console

Surge Protection and Filtering
Surge energy rate	600 J

Packing Units
Unit Type of Package 1	PCE
Number of Units in Package 1	3
Package 1 Height	48 cm
Package 1 Width	60 cm
Package 1 Length	70 cm
Package 1 Weight	66.7 kg

Contractual warranty
Warranty	2 years repair or replace

Datasheet

APC Easy UPS On-Line, 3kVA/2700W, Rackmount 4U, 230V, 6x IEC C13+1x IEC C19 outlets, Intelligent Card Slot, LCD, Extended Runtime, W/ Rail Kit (SRV3KRILRK-E)

Spesifikasi

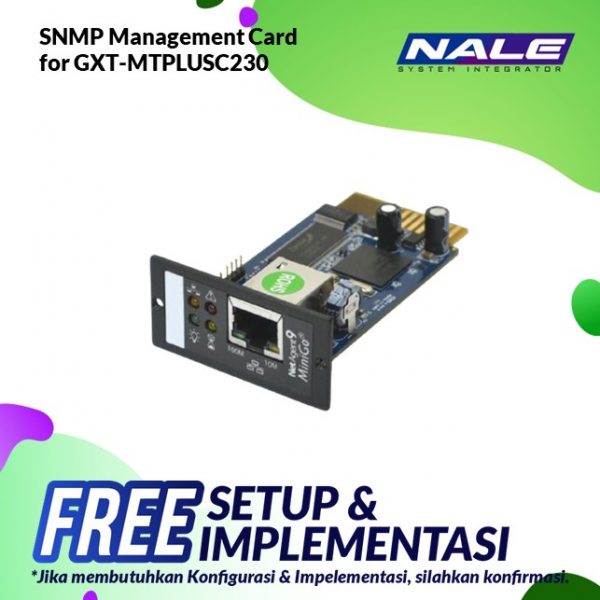

SNMP Management Card for GXT-MTPLUSC230 (DY801)

Vertiv Liebert GXT-MTPLUS On-Line 1000VA/900W 230V (GXT1000-MTPlusC230)

Vertiv Liebert GXT-MTPLUS On-Line 2000VA/1800W 230V (GXT2000-MTPlusC230)

Vertiv Liebert GXT4 On-Line 5000VA 230V (GXT4-5000RT230)

Vertiv Liebert GXT5 On-Line 10000VA-10000W 230V (GXT5-10KIRT5UXLN)

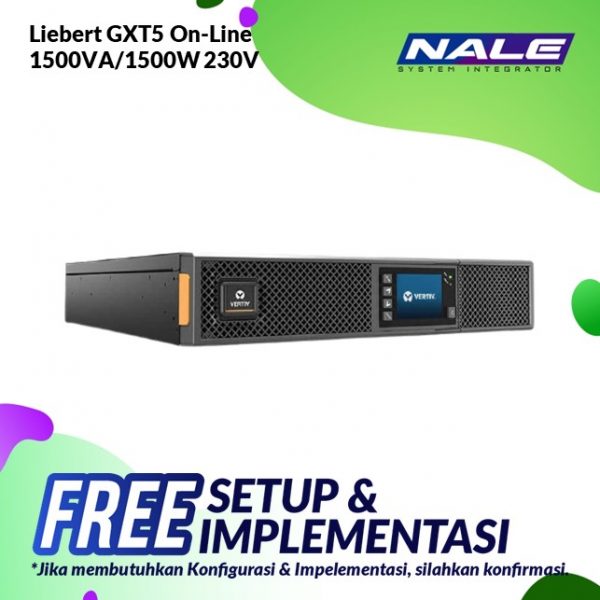

Vertiv Liebert GXT5 On-Line 1500VA/1500W 230V (1202009)
